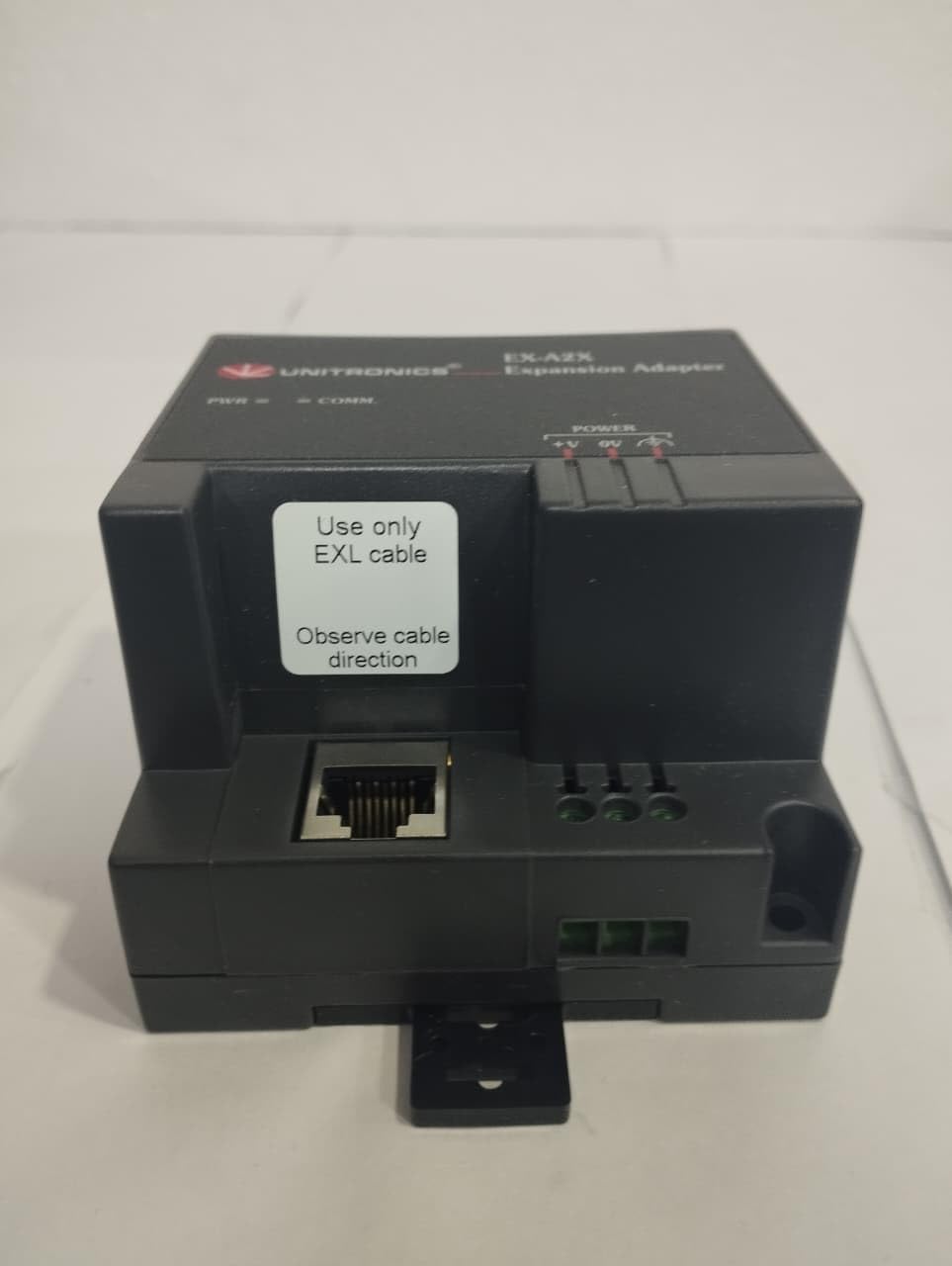

[EX-A2X] I/O Expansion Adapter EX‑A2X – Supports 8 Modular I/O Modules, 12 / 24 V DC Supply, DIN‑Rail or Screw Mount

The EX‑A2X I/O Expansion Adapter provides a flexible and reliable interface for expanding digital and analog I/O capacity in automated control systems. With support for up to 8 additional I/O modules, this adapter enables seamless system extension without replacing the main controller. It accepts a wide supply range of 10.2 – 28.8 V DC (12 V or 24 V nominal) with low power draw and boasts galvanic isolation between the adapter’s main port and the expansion modules. Designed for industrial environments, the EX‑A2X features a compact housing (80 mm × 93 mm × 60 mm) and can be mounted on a 35 mm DIN‑rail or via screw. Status LEDs indicate power and communication health. Rated for ambient operation of 0 °C to 50 °C and humidity from 10% to 95% (non‑condensing), the adapter is well suited for factory automation, equipment upgrades, and distributed I/O architectures.

• Supports up to 8 Expansion Modules: Enables greater I/O capacity without controller replacement, Wide Input Voltage Range: Operates at 12 V or 24 V DC (10.2 – 28.8 V) for flexible application.
• Low Power Consumption: Maximum current draw 650 mA @12 V or 350 mA @24 V; typical power around 4 W.
• Galvanic Isolation: Ensures isolation between controller port and expansion modules to protect and improve reliability.
• Compact DIN‑Rail or Screw Mount: Dimensions 80 mm × 93 mm × 60 mm; mounts easily in control panels, Industrial Environmental Ratings: Rated IP20/NEMA1; operating temperature 0 °C to 50 °C, humidity 10%‑95% non‑condensing.
• Simple Status Indicators: GreeIdeal for Automation System Expansion: Perfect for OEMs, machine builders, and system integrators needing modular I/O growth.n LEDs for power (PWR) and communications (COMM) provide visual status for maintenance,
