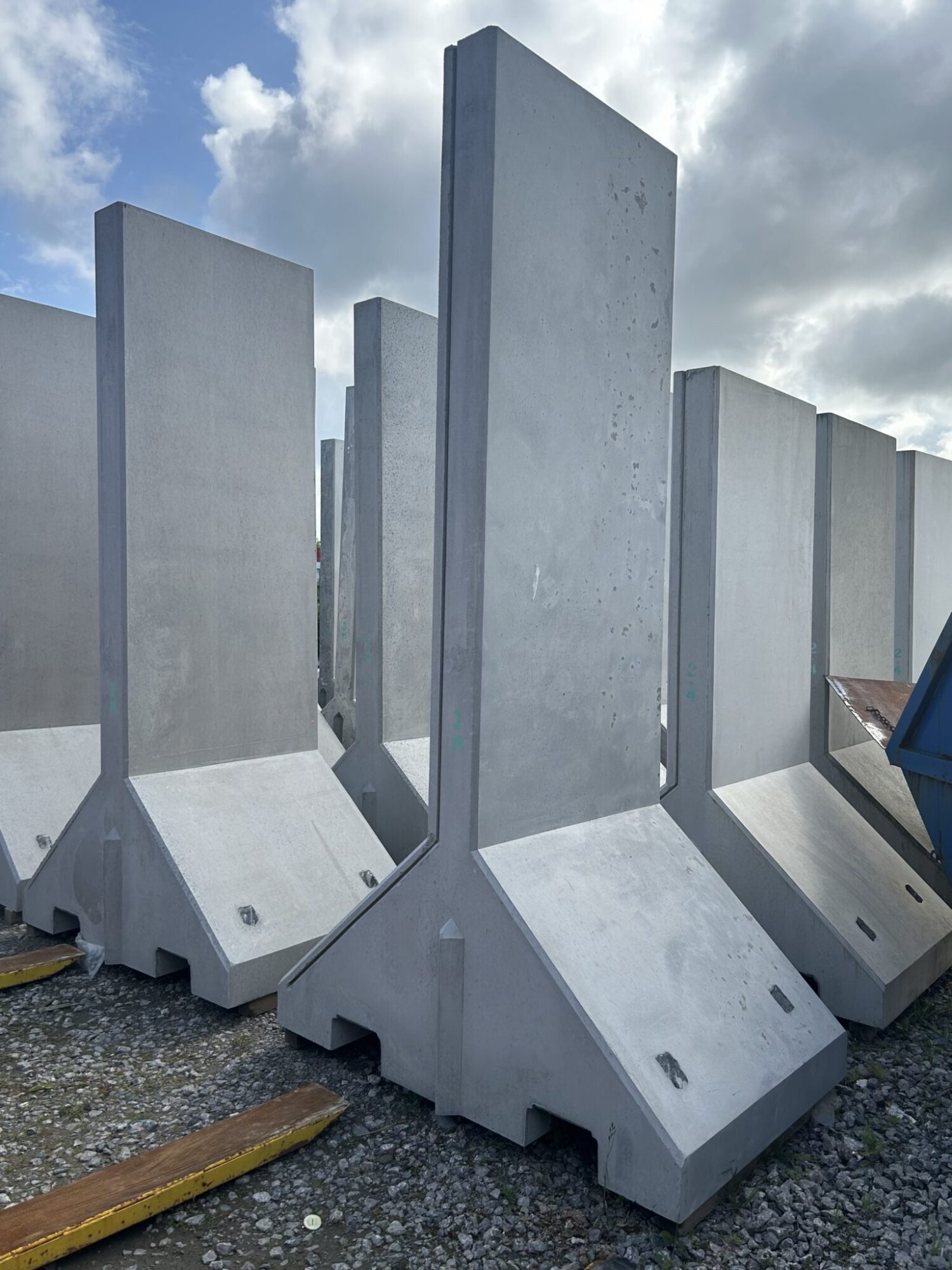

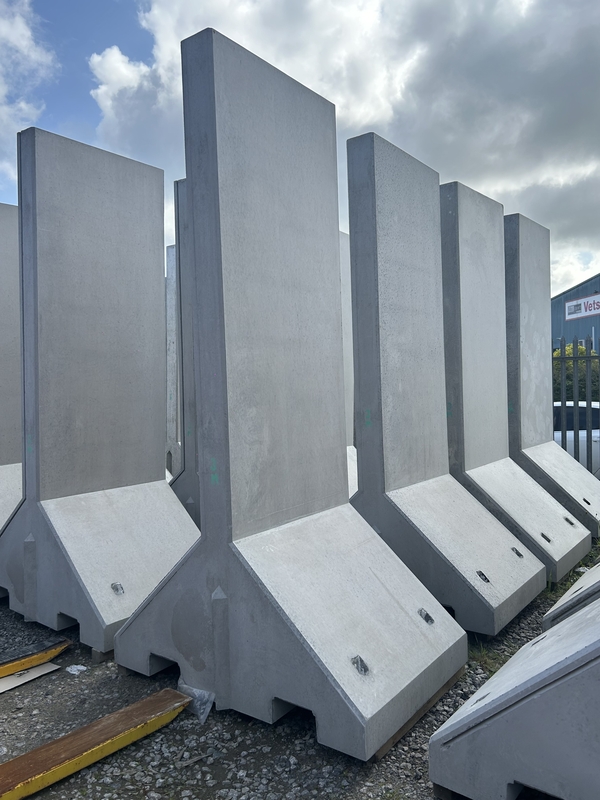

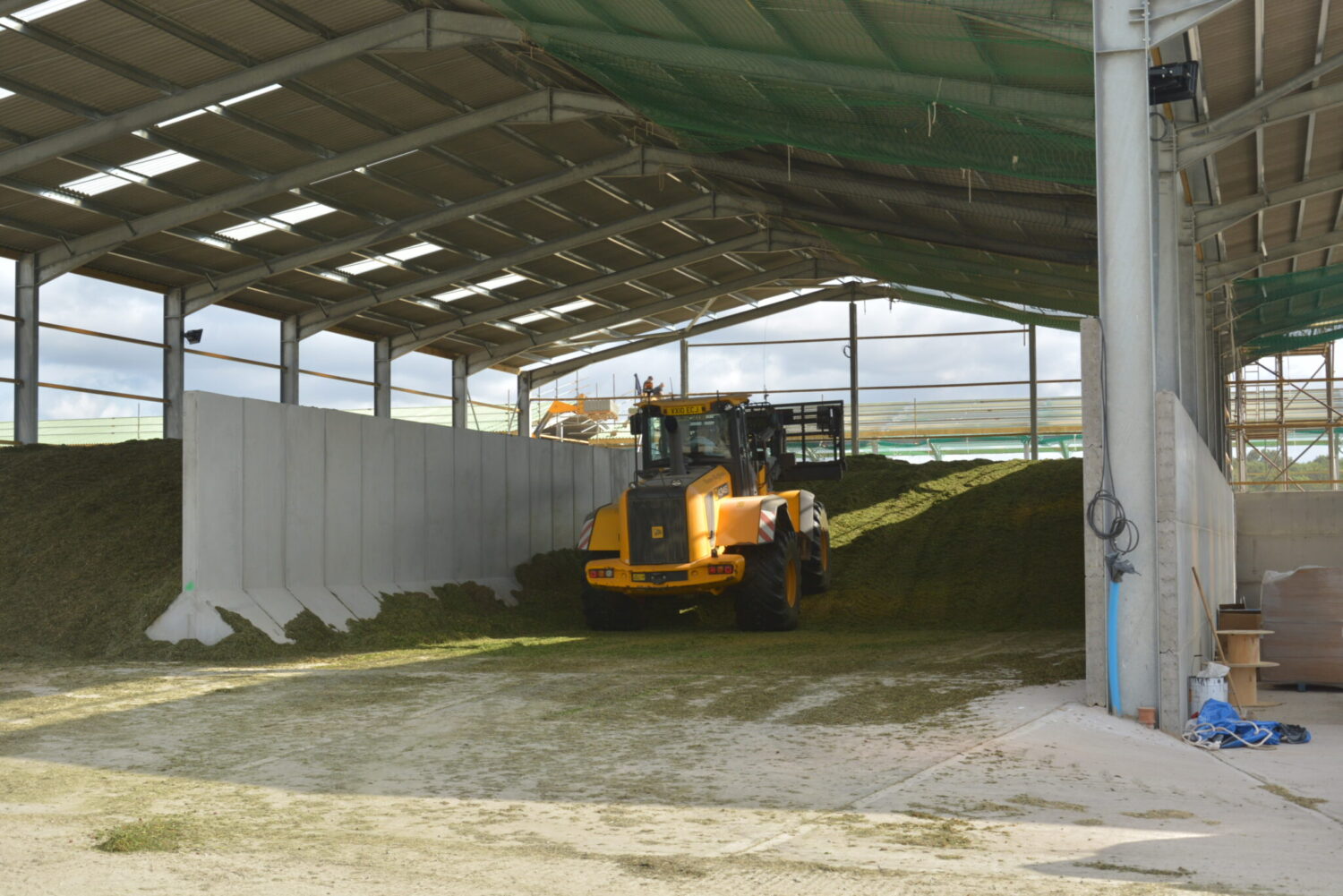

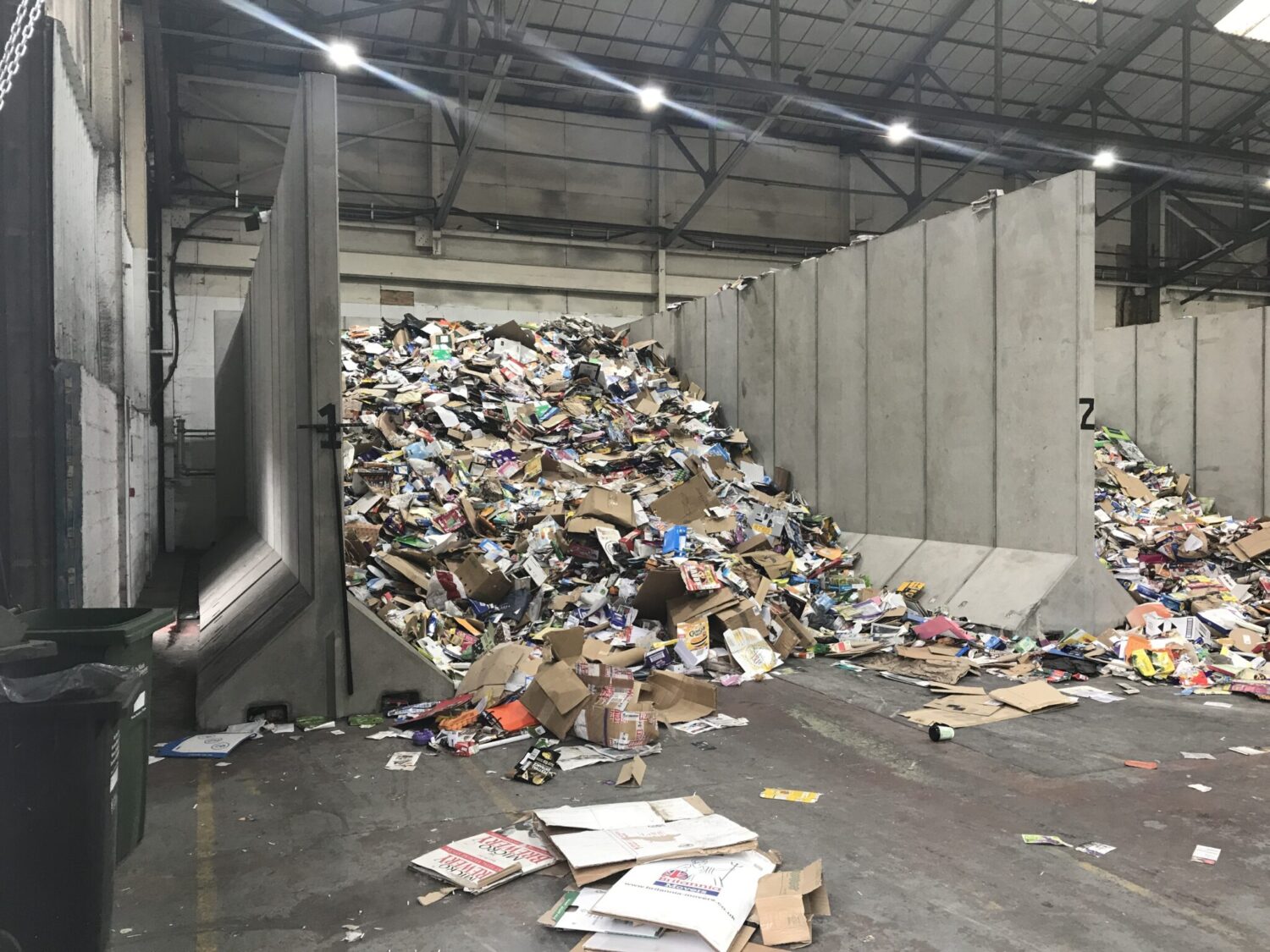

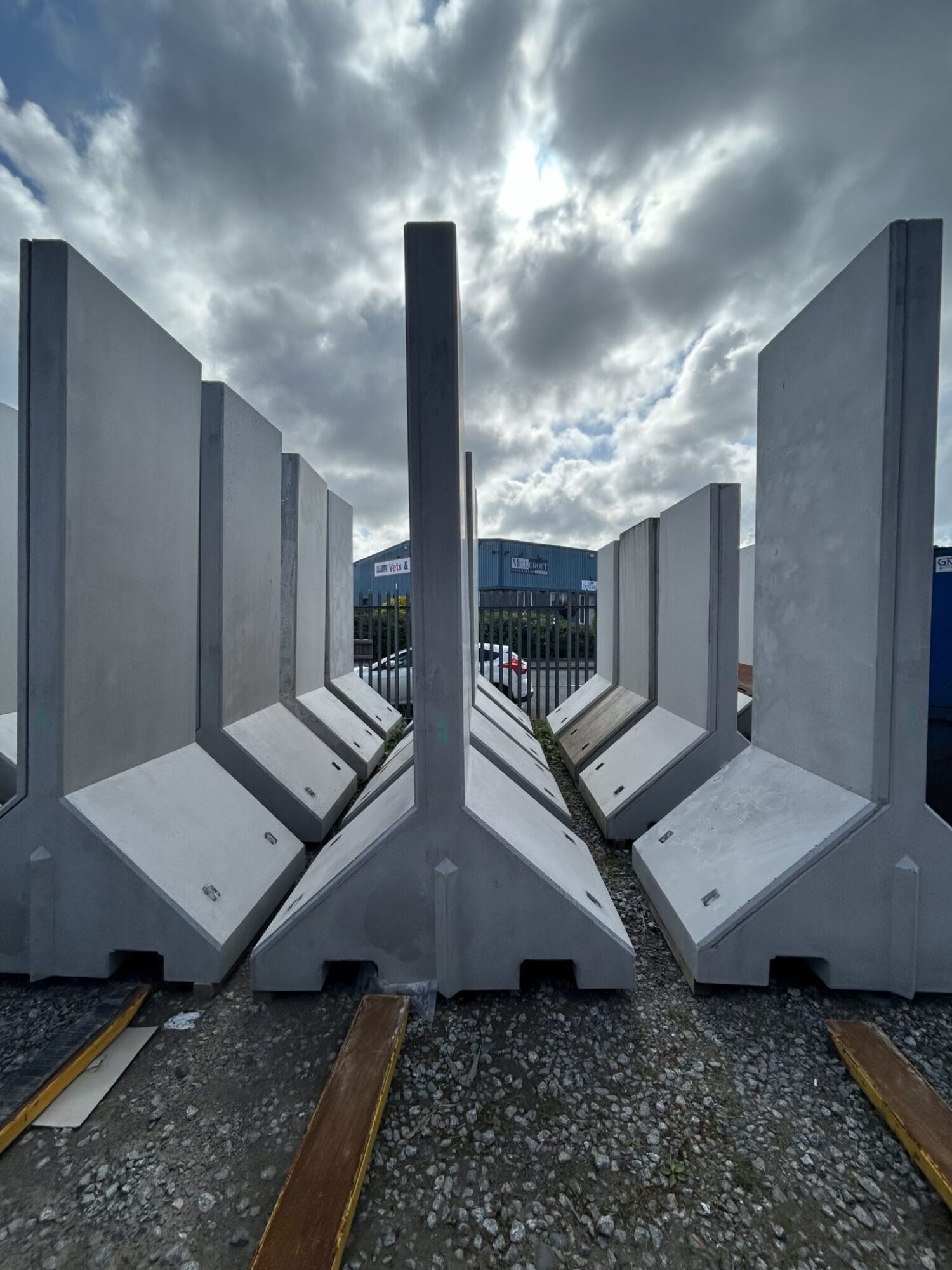

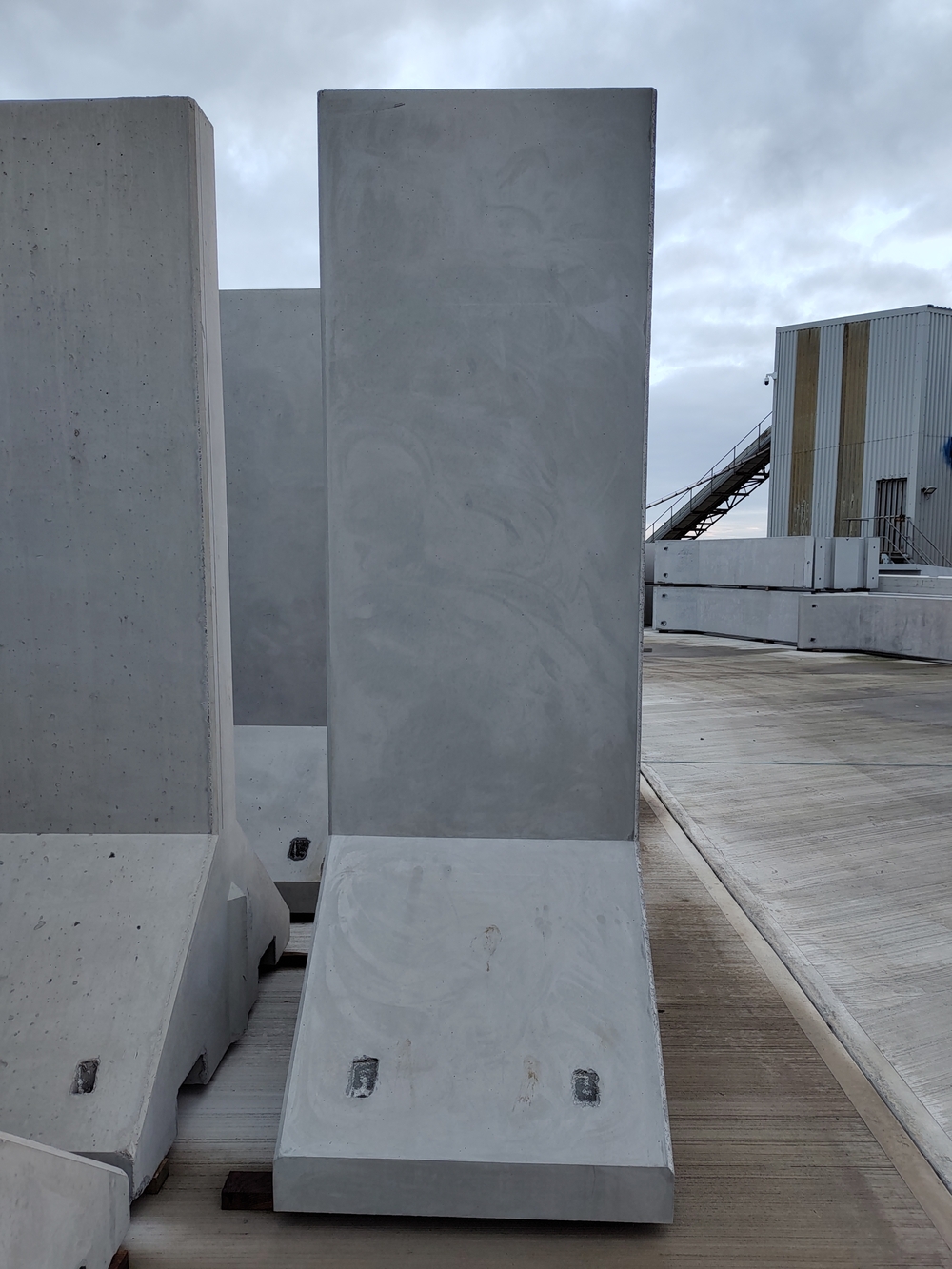

Our precast, movable Concrete Arrow Panels offer a robust, durable, and cost-effective solution for a wide range of storage needs. Perfect for materials such as silage, feed, sand, gravel, and more, these panels combine strength with versatility, making them suitable for both temporary and permanent setups.

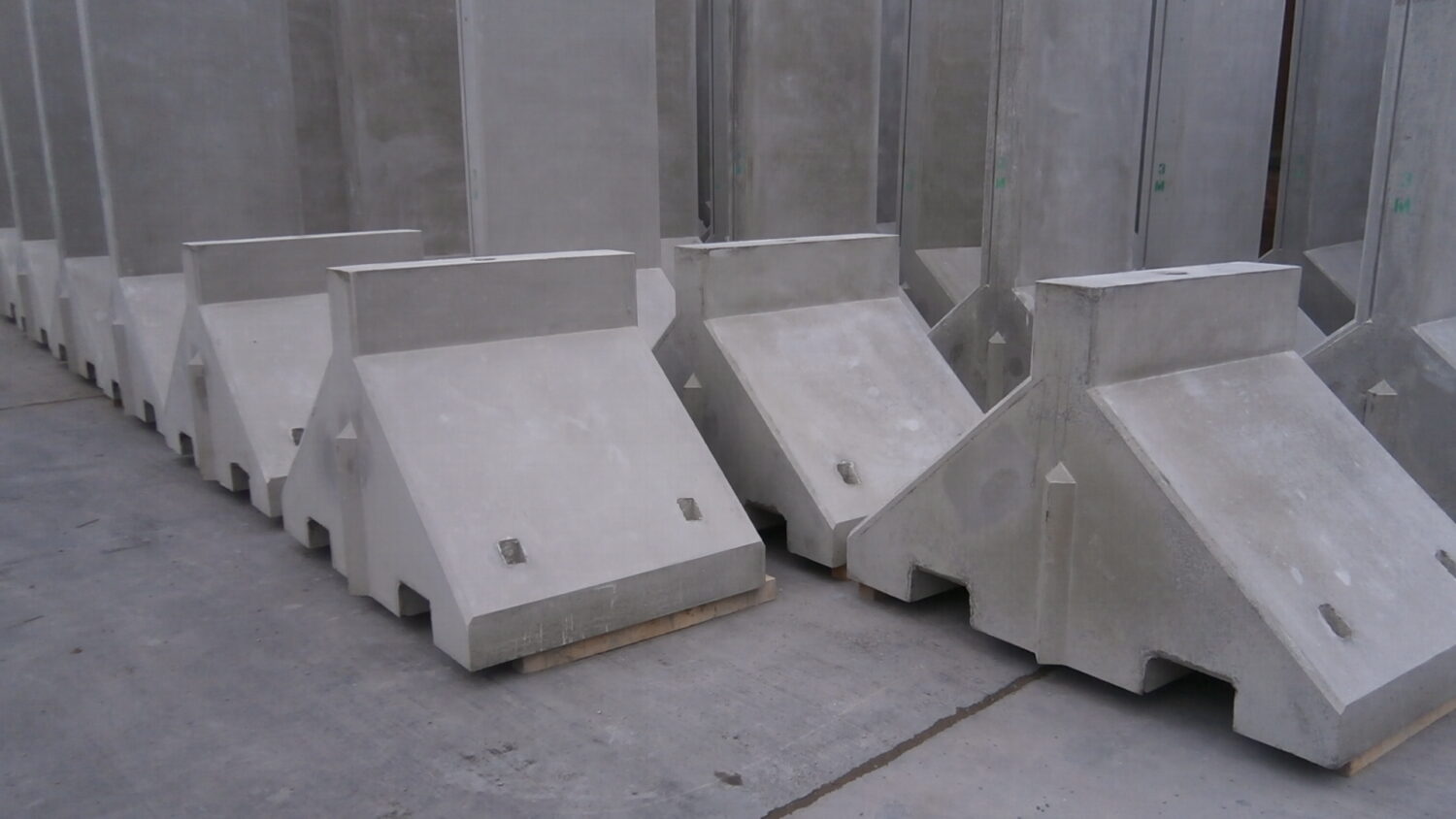

Available in standard heights from 2.4 m to 4.0 m. All but the 4.0m units are completely freestanding and do not require fixing down, the heavy base section providing the ballast right where its needed. Special corner units are supplied to form full bunker system.
Key Benefits:
- Quick and Easy to Install – get your storage area ready in no time.
- High Impact Resistance – designed to withstand heavy loads and rigorous use.
- Flexible Handling – easily moved and repositioned to suit your changing needs.
- All-Weather Durability – built to last in any environment.
Whether you need a long-term storage solution or a temporary setup, Concrete Arrow Panels provide the perfect combination of strength, flexibility, and reliability.

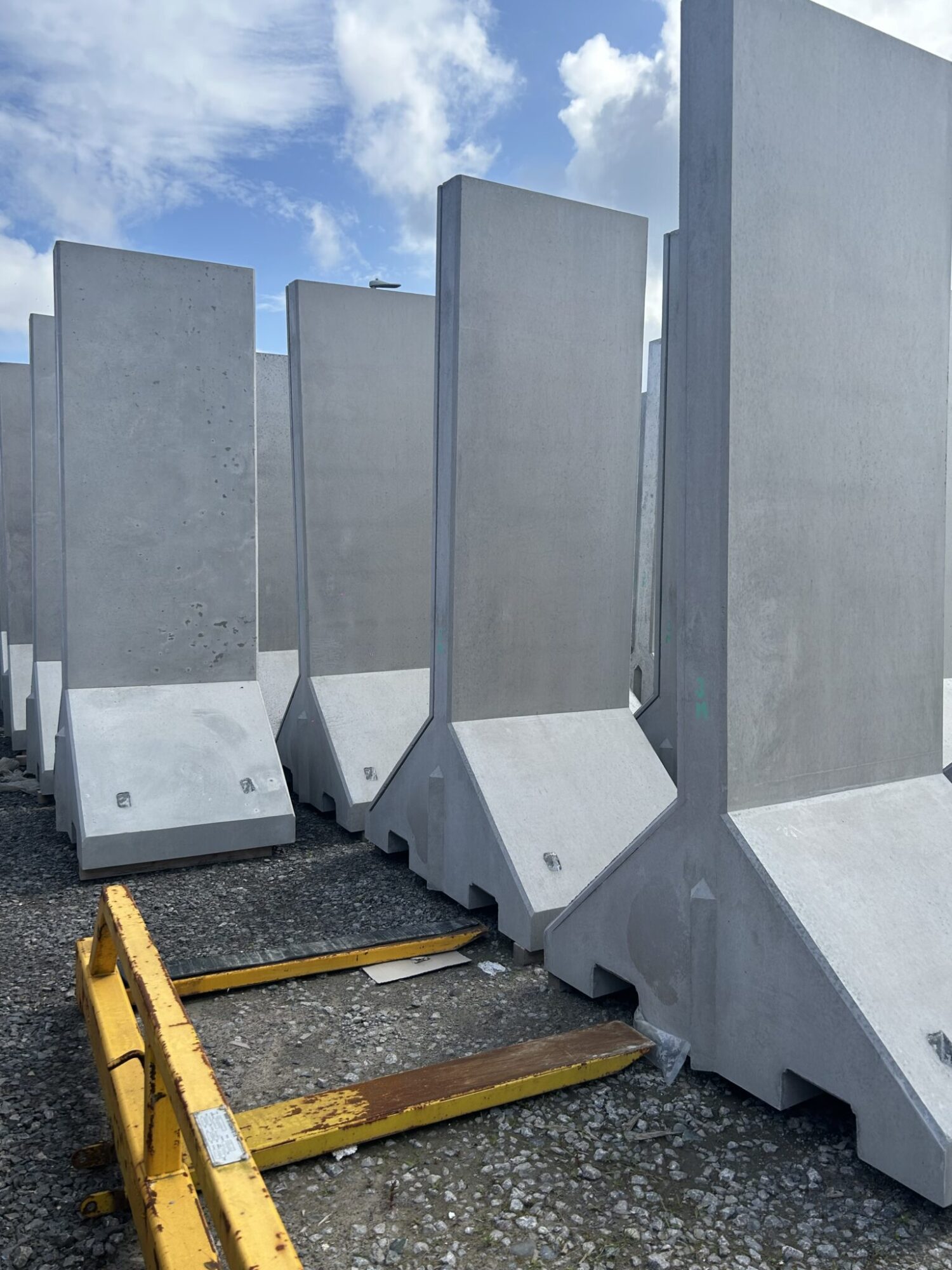

Units are regularly installed with a telehandler, further reducing the cost and time to complete the project. Repositioning can be carried out using the cast in top edge lifting system or simple pallet fork slots cast into the base.
| Height | Weight | Width | Stem | Base |
| 2.4m | 2.59t | 1.0m | 200mm | 1.55m |
| 3.0m | 2.88t | 1.0m | 200mm | 1.55m |
| 3.6m | 3.15t | 1.0m | 200mm | 1.55m |
| 4.0m | 3.35t | 1.0m | 200mm | 1.55m |
